APPLICATIONS：

◆ Manufacturers of Thermal cycler(PCR), Real-time Quantitative PCR(qPCR), Dry block heater, Water Bath, Incubator, for the instrument temperature calibration in development, production and quality control;

◆ On-site installation checking, temperature calibration and instrument performance qualification of PCR, qPCR，Dry block heater, Water Bath, Incubator equipment;

◆ Routine maintenance, inspection and calibration of laboratory temperature control equipment;

◆ Optimization of temperature control process for PCR reagent development;

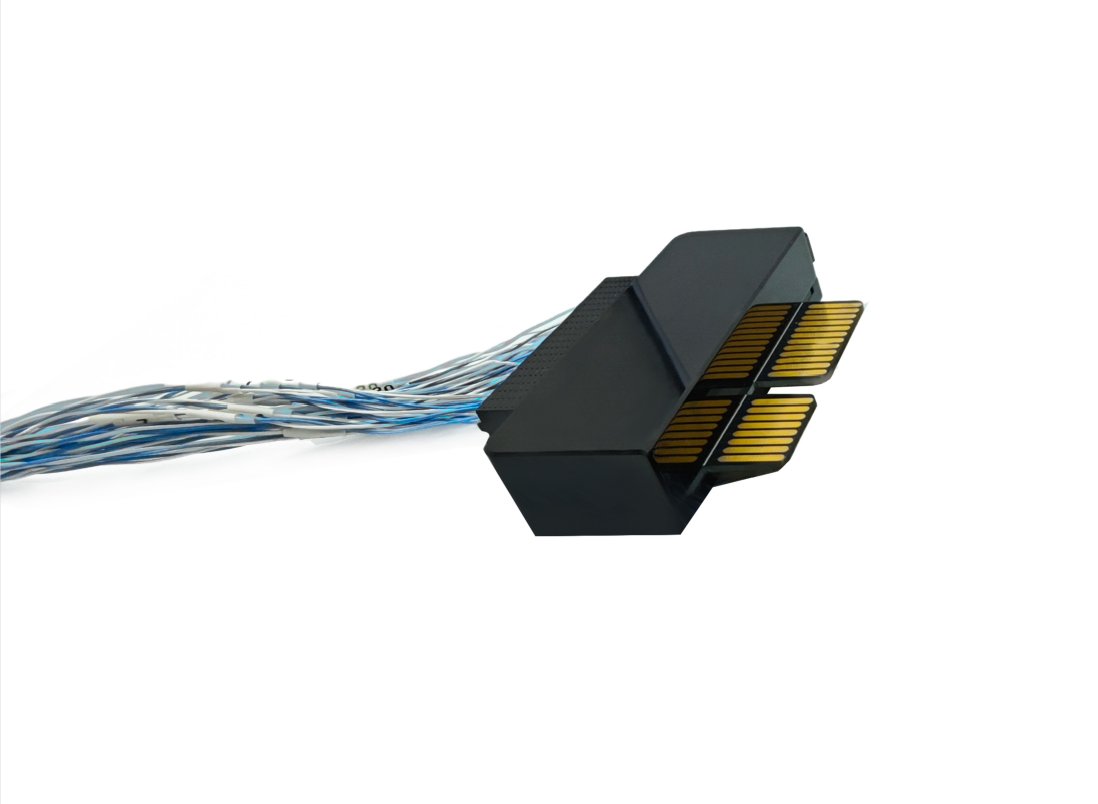

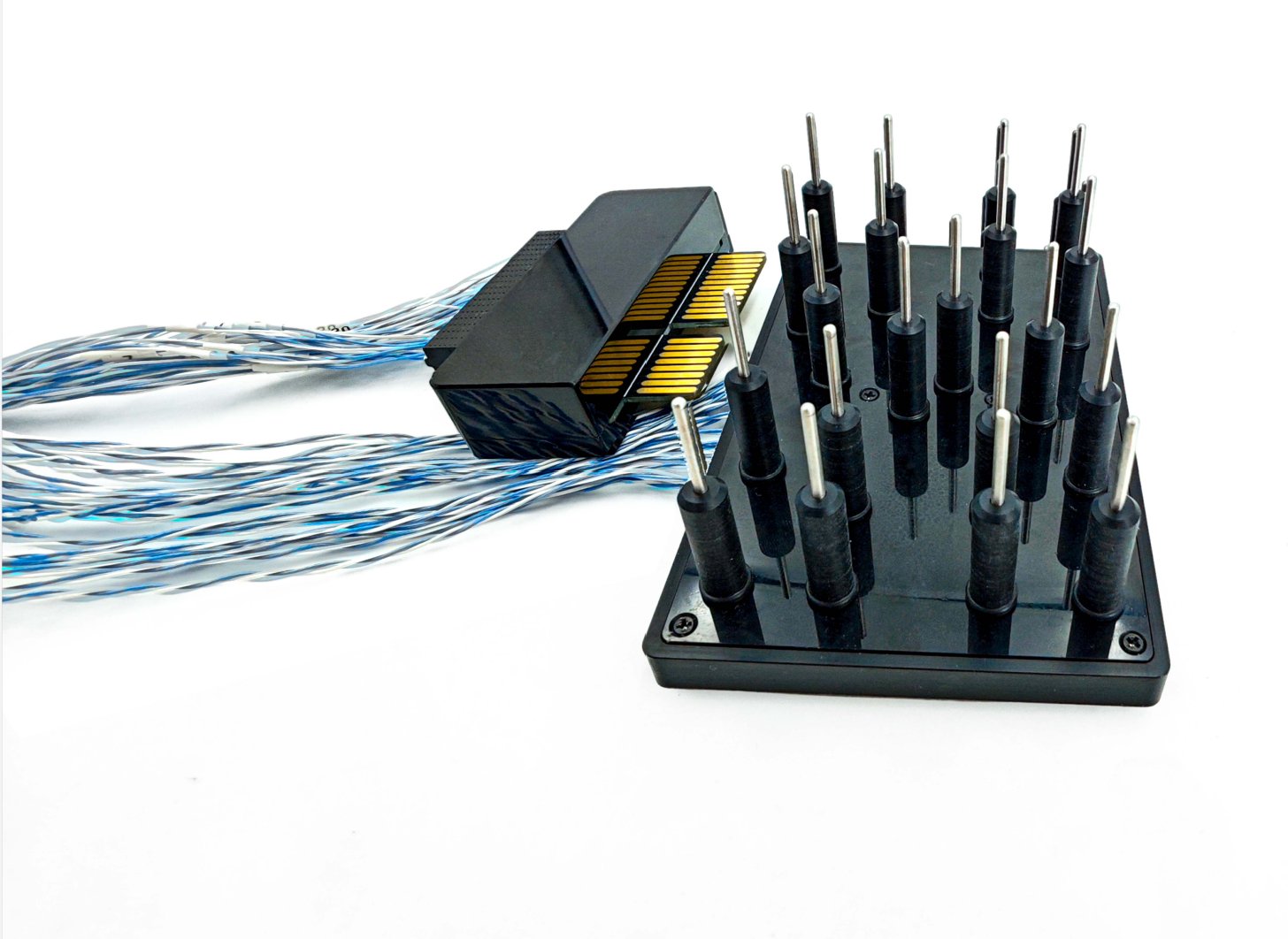

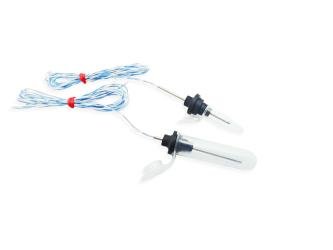

● Multiple probes are suitable for tube mode, plate mode and

 other customized probe. The high-precision PT sensor is

 wrapped with metal, which can precisely detect the actual

temperature of the machine;

● Real-time acquisition in multi-channels allow the detection

of temperature deviation between different wells of PCR

 instrument, effectively monitoring the temperature edge effect

of the well plate;

● High-speed temperature acquisition up to 20 channels

/0.5S, suitable for most real-time data acquisition of

ramping rate below 10℃/S in the PCR tube, without

losing temperature data;

● The device comes with easy-to-use software and supports

 temperature accuracy and uniformity measurement in stable

 period, analysis and measurement of heating and cooling

speed, dynamic tracking of temperature curve.

It supports temperature curve selection, marking, tracking

 and data export to excel for further analysis;
